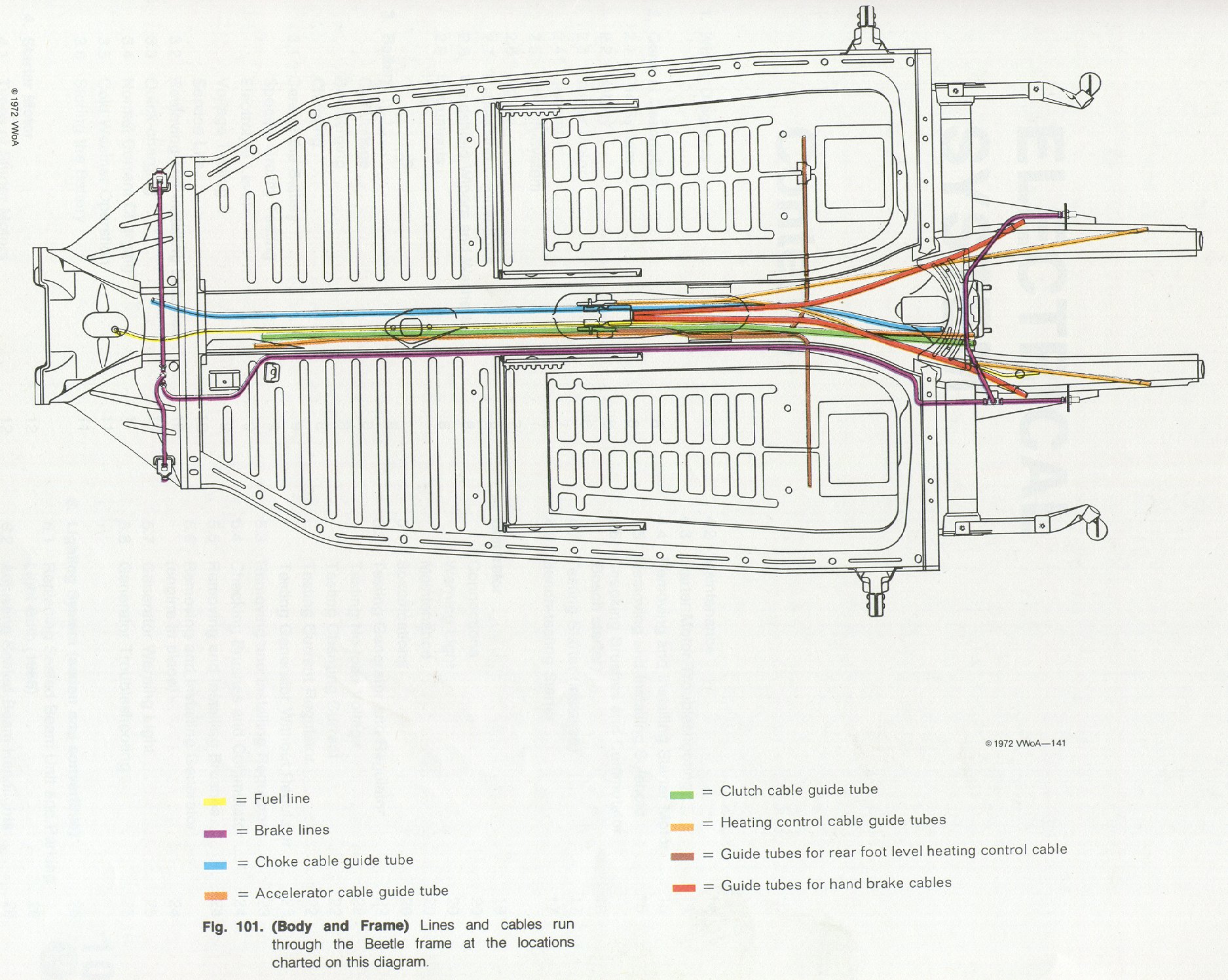

Lines and cables through frame

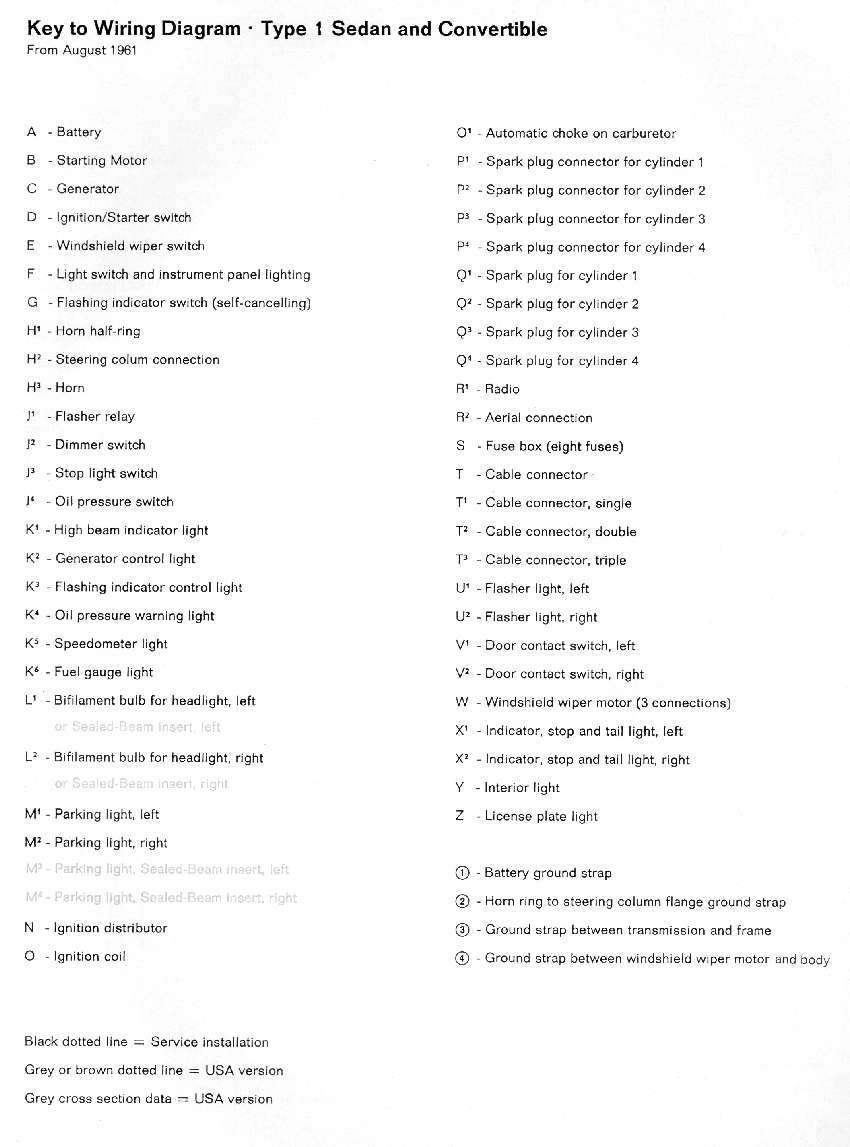

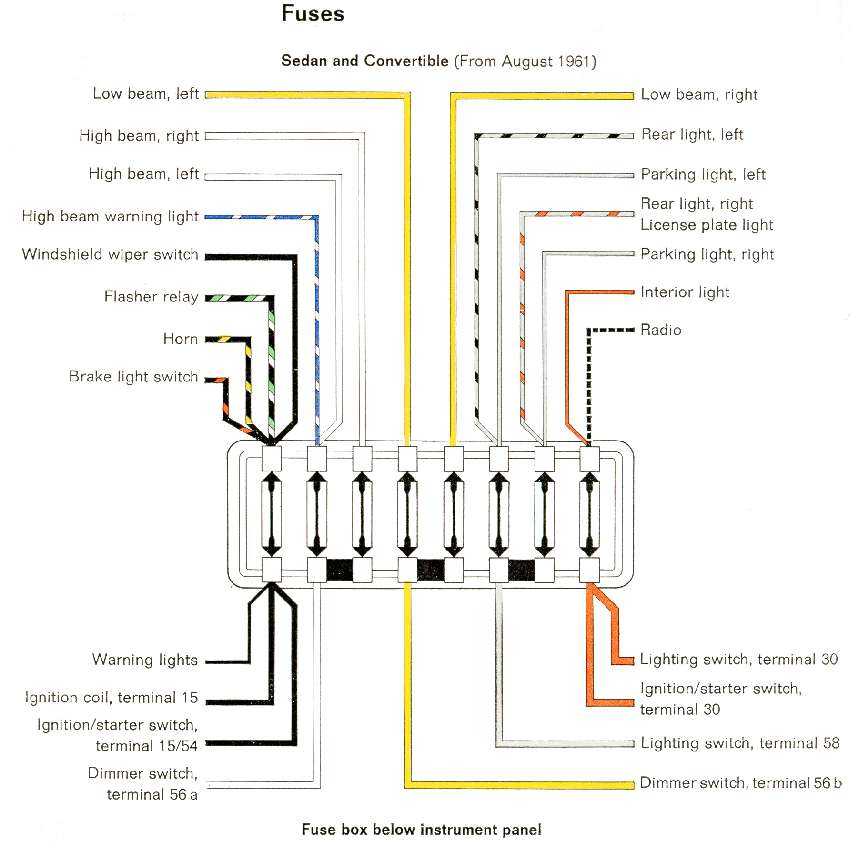

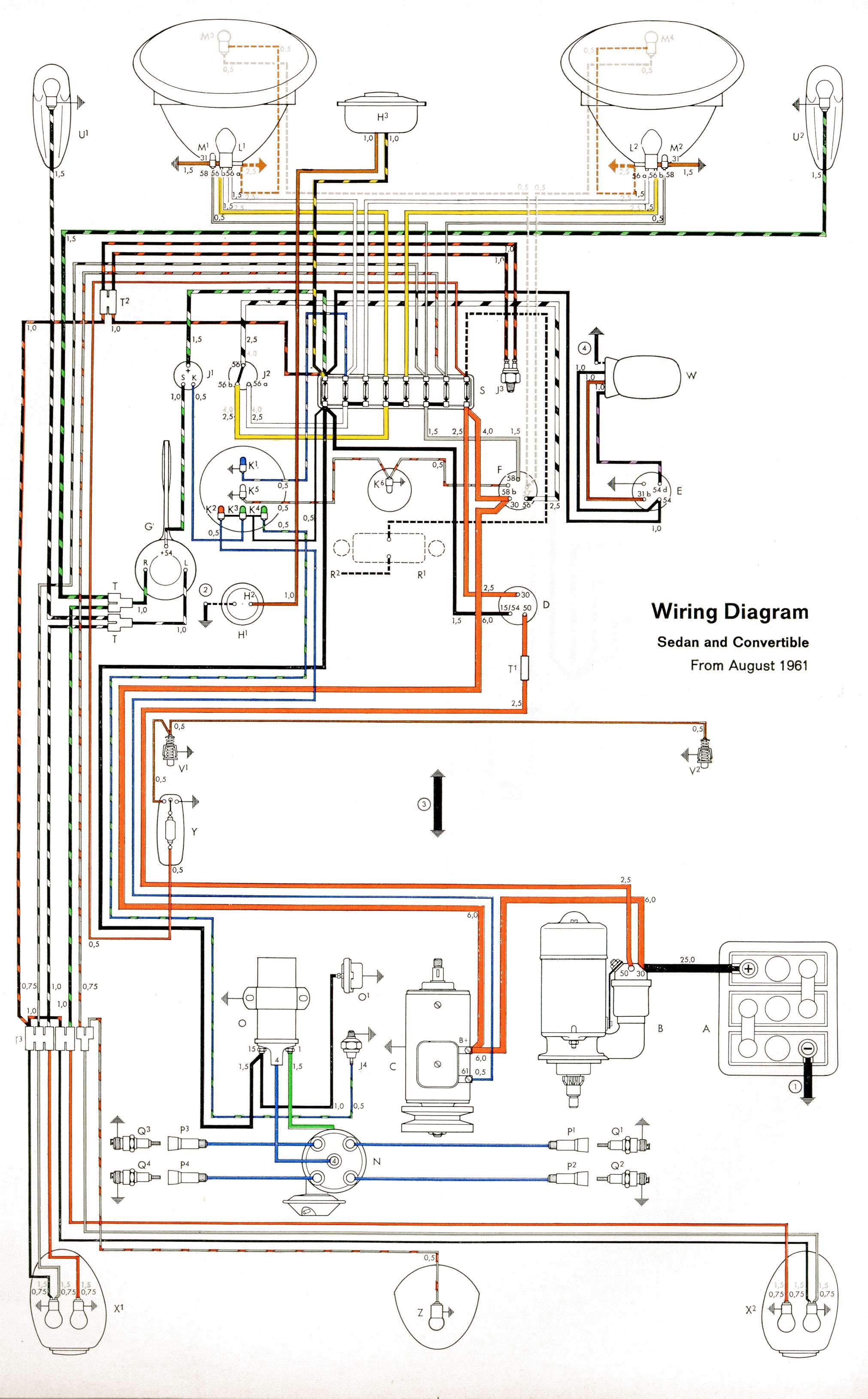

BUG 62-65
BUG62-65

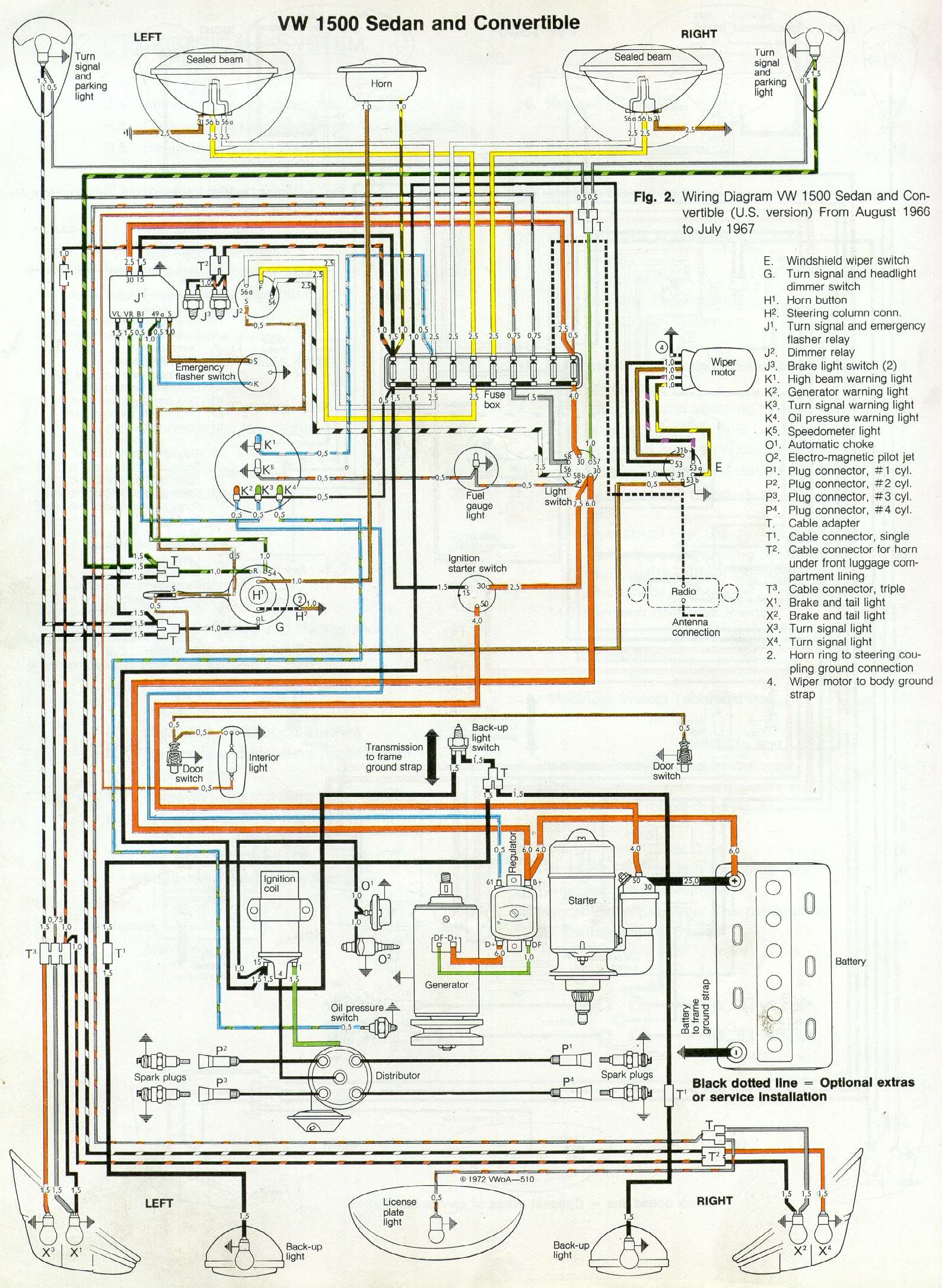

BUG 66-67

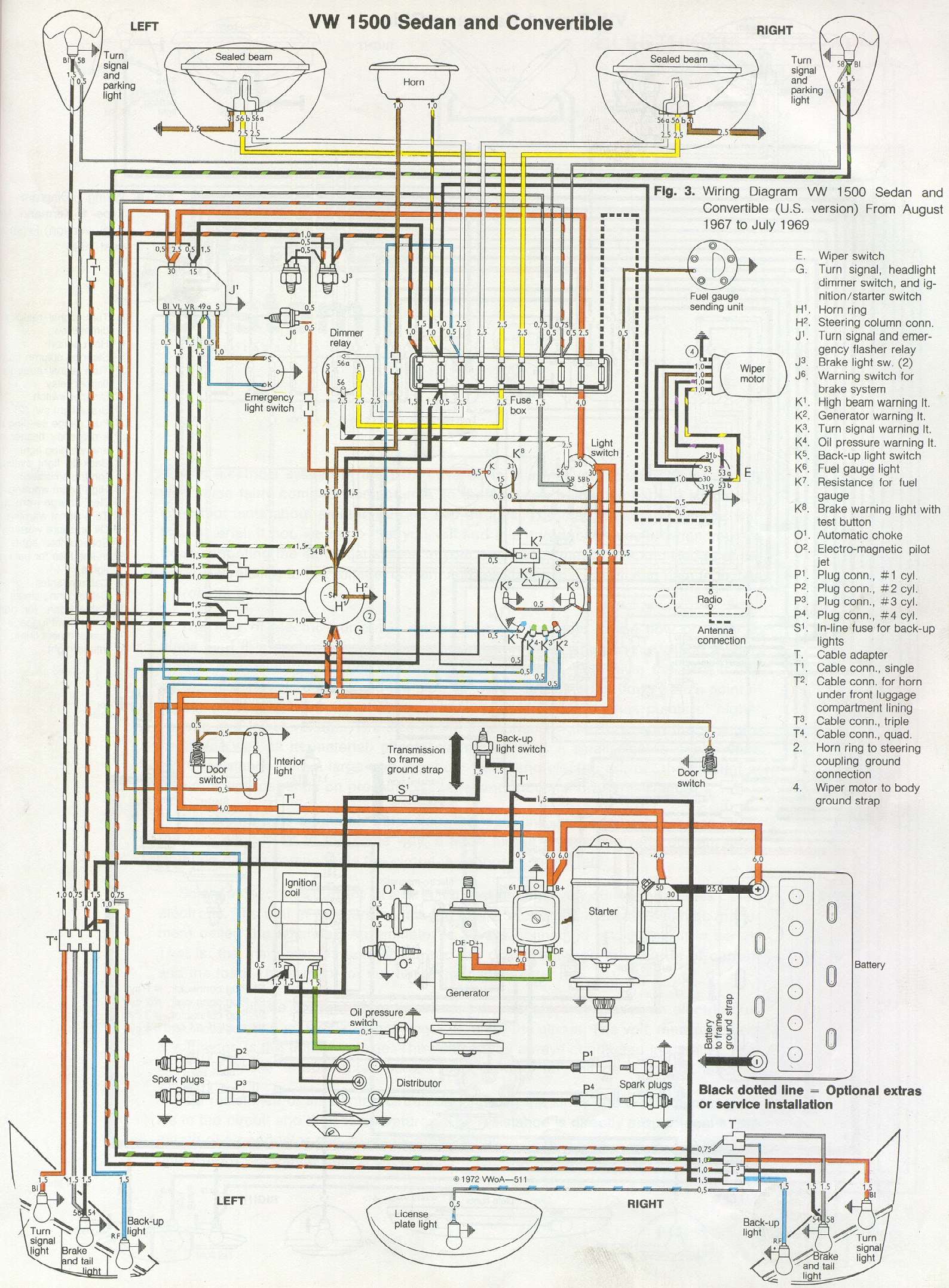

BUG 68-69

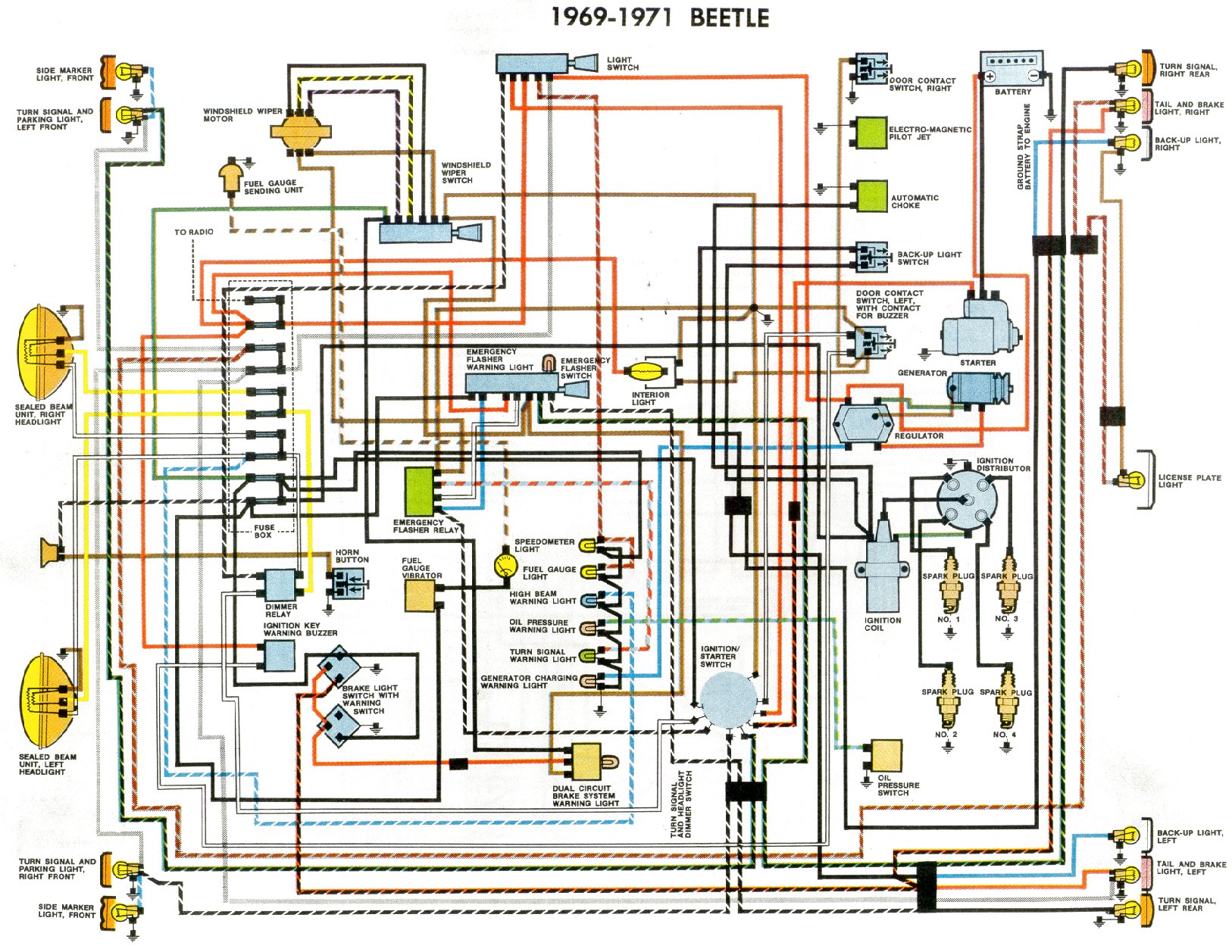

BUG 69-71

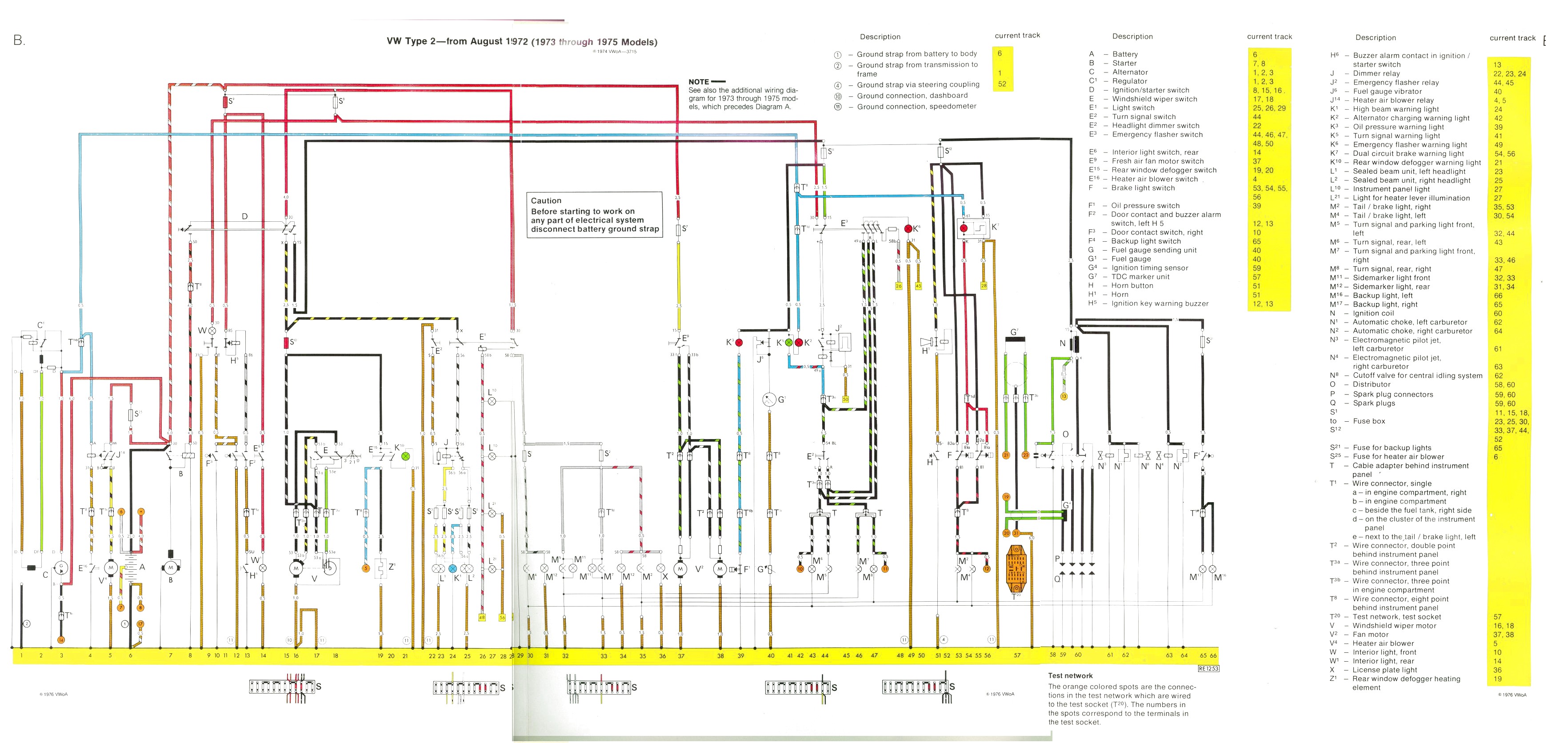

BUS 73-75

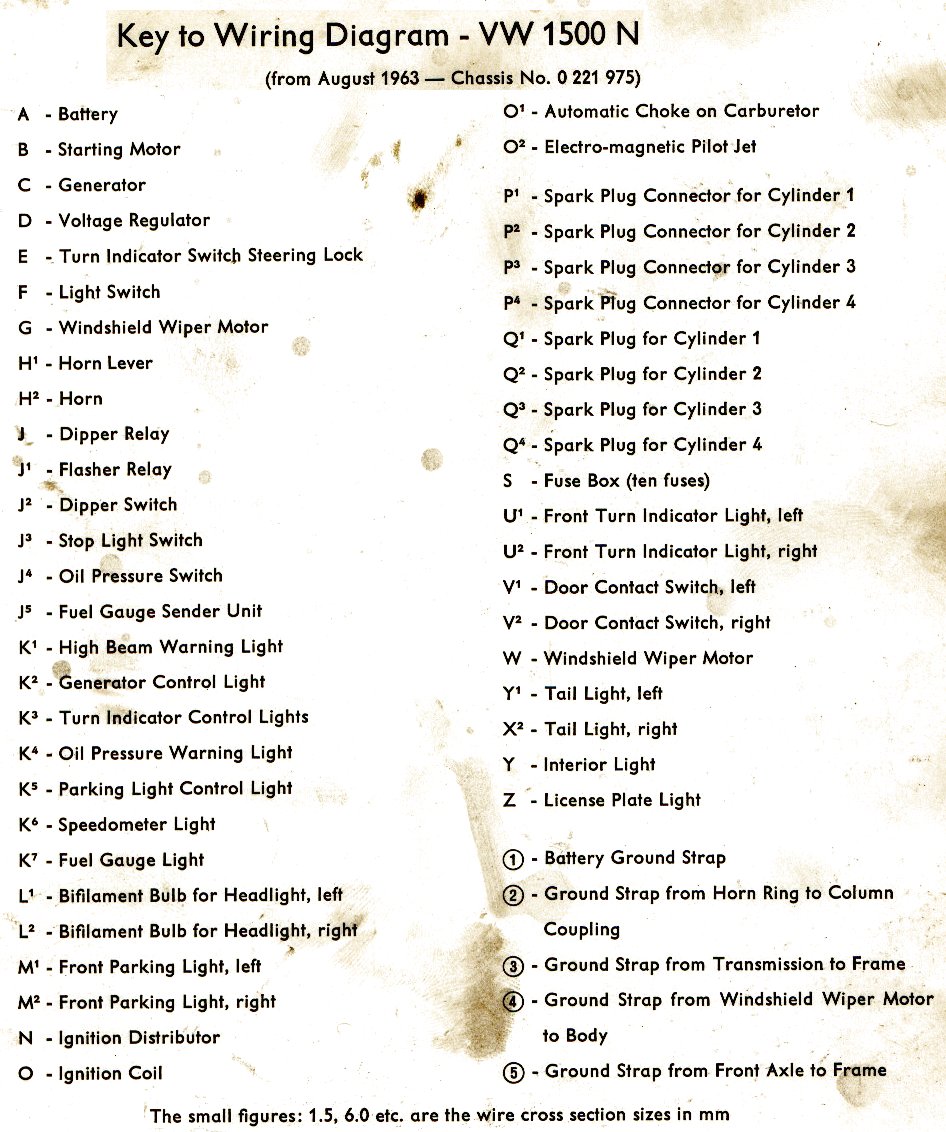

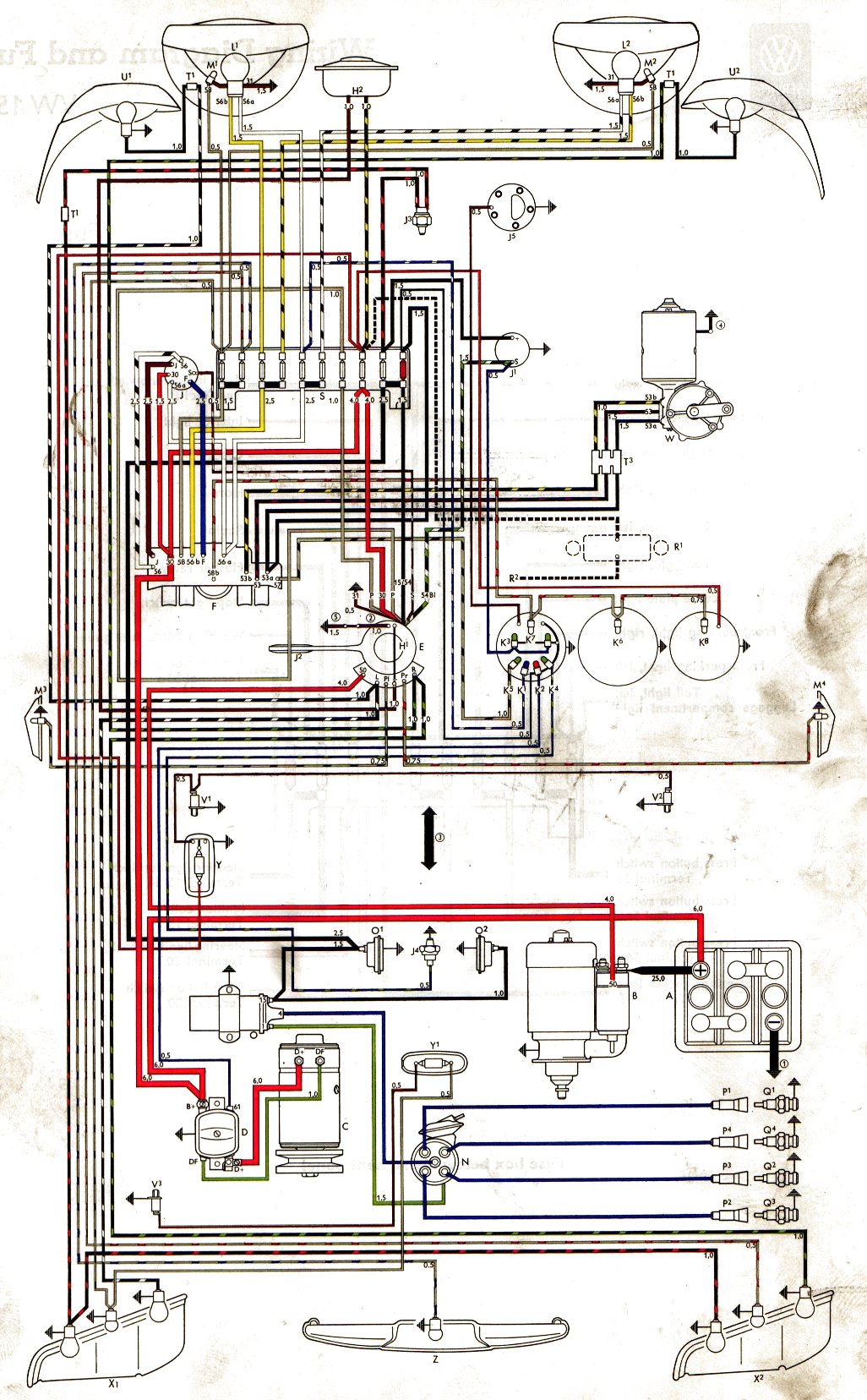

TYPE 3 64-65

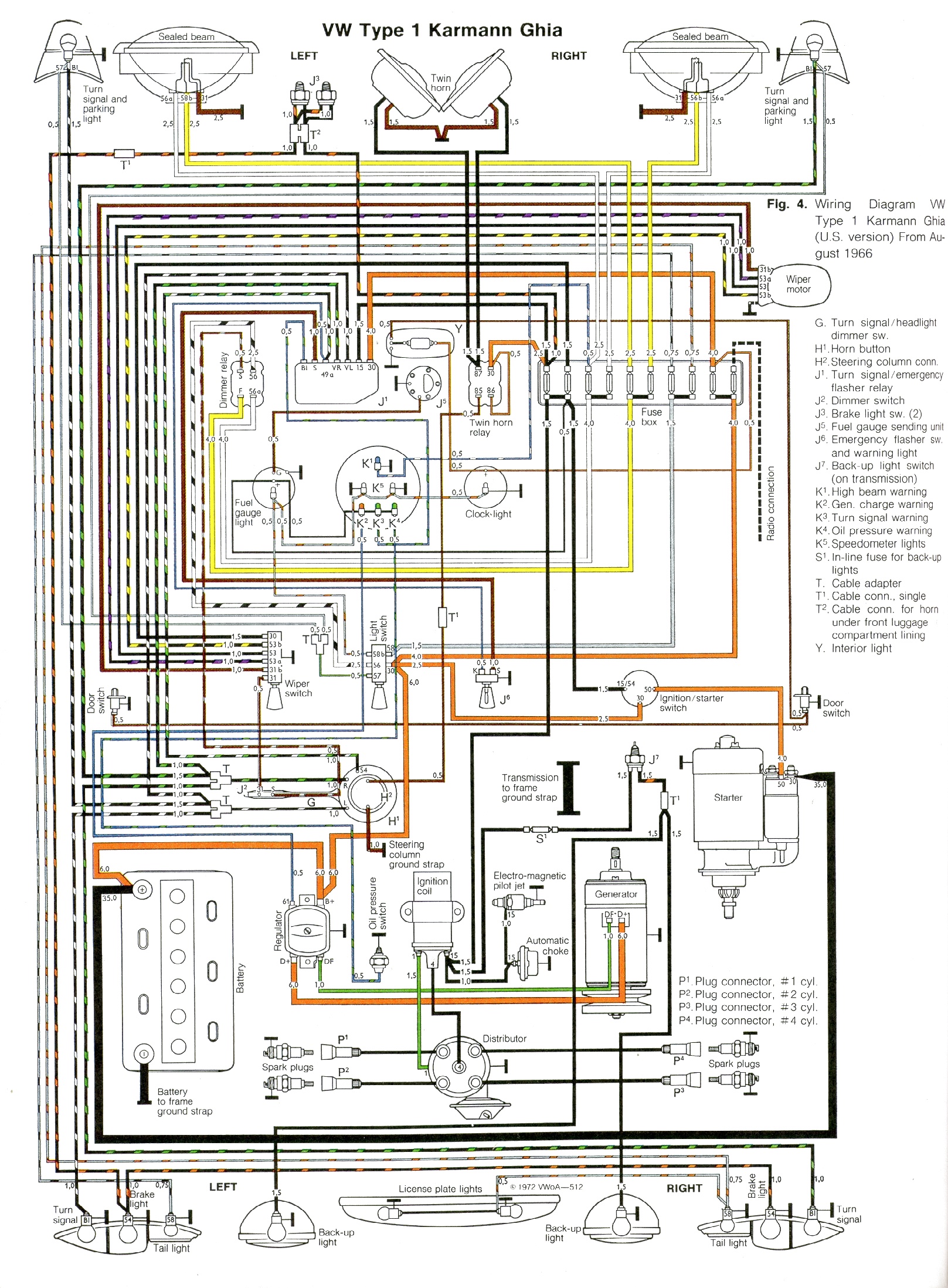

KG 1966
FIRE ORDER ALL AIR COOLED Hot wire from switch goes to post 15 on coil, points go to 0
