1971 - 1973 ( & other?) fuel evaporative system
« on: March 15, 2015, 07:55:27 PM »

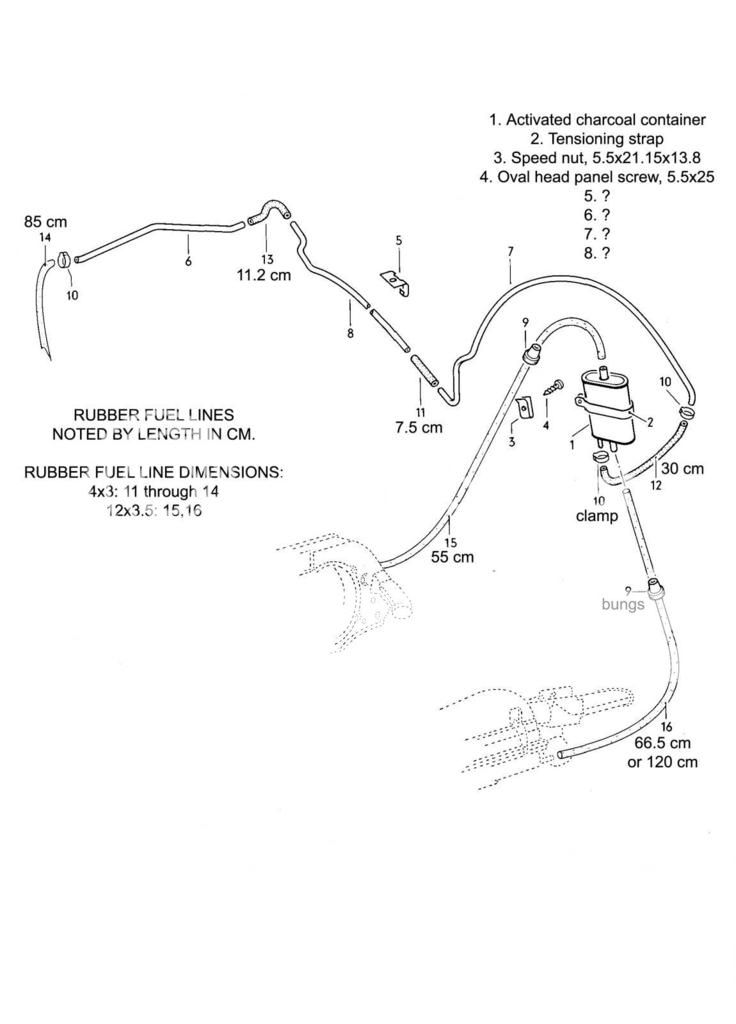

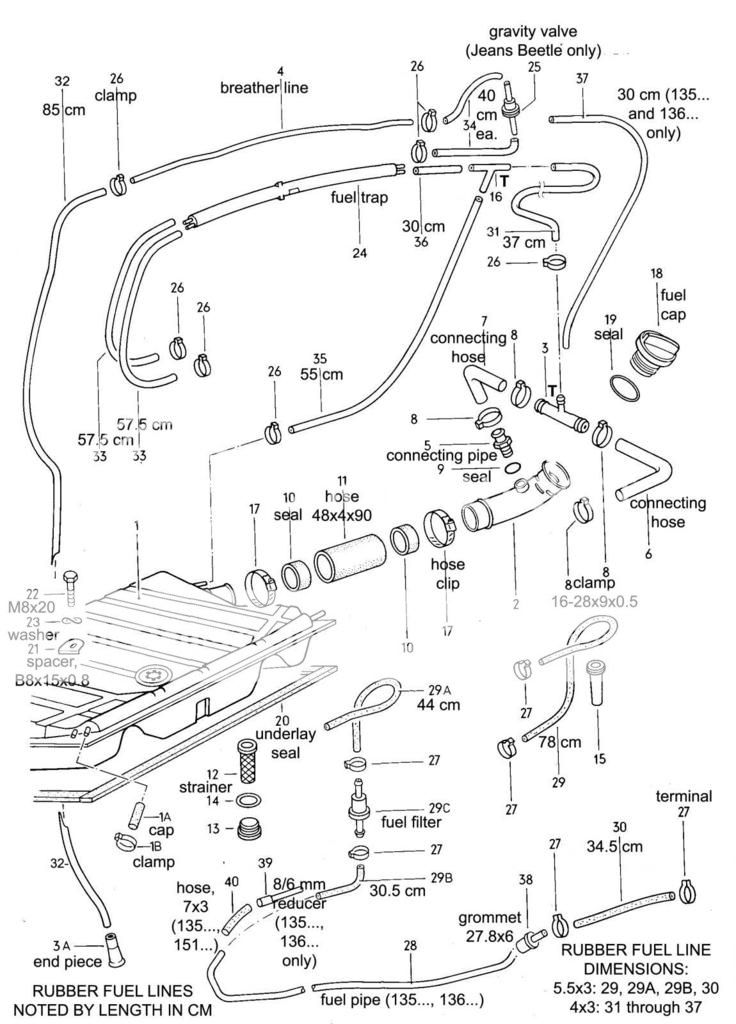

   ~Total length

   1973 Super Beetle (1303):  187 cm of fuel line with a 5.5 mm inner diameter, and 402 cm of fuel vacuum line with a 4 mm inner diameter
    1971-1972 Super Beetle (1302) fuel vacuum line are somewhat different.

     31: 60 cm
     32: 126.5 or 95 cm
     33: 50 cm (x2)
     34: 30 cm (x2 = one piece 60 cm long)
     35: 60 cm
    36: 13 cm










 These images are free to the public!

 Hope this helps someone!

matthew
